TP-310
Price ₹0
(Tax included Shipping calculated at checkout)

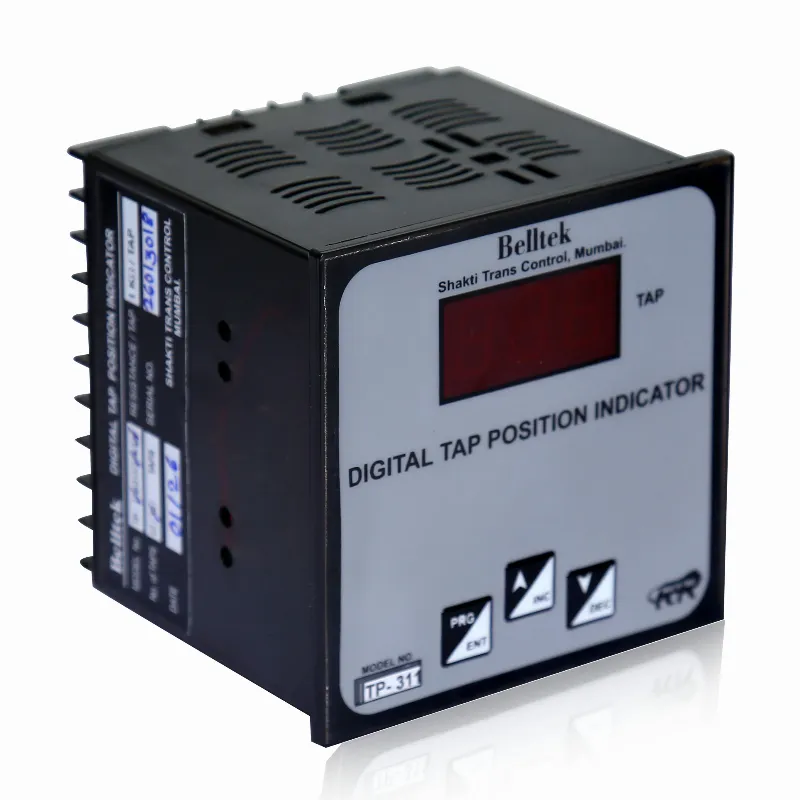

Digital TAP Position Indicator (Only Indicator)

Min. Qty Max. Qty Price Range
Description
  • No of Tap Positions   :    Up to 35 Taps (Default 17 Taps)
  • Type of Sensor          :    1K Ohms / Step Resistance
  • Analog Output          :    4-20mA Dual Non-Isolated O/P
  • Display Format          :    3-Digit 7-Segment LED Red Display
  • Power Consum          :   < 1W
  • Accuracy                    :   +/- 0.5% FSD
  • Size                            :   96mm x 96mm
  • Panel Cutout              :   90mm x 90mm
  • Depth                         :   75mm
  • Operating Temperature :   0 – 50°C
  • Auxiliary Supply         :   85V - 265V AC and 70 - 430VDC
