BA1-36W-24V
| Min. Qty | Max. Qty | Price Range |
|---|
Output Voltage / Current : 24V @ 1.5A
Output Load Regulation: 22.80V - 25.2VDC
Efficiency: >75% at Full Load
Output Ripple: < 250mV
Output Over Current Limit Point: <2A
Output Connector Type: DC Jack
Output Indication: Power Ok Indicator
Input voltage Range: 100-300VAC
Line Regulations: <+/- 5%
Input Current: 400mA Rms
Input Frequency: 47Hz - 63 Hz
Mounting Type: Wall Adapter
Application: Water Purifiers, Adapter
High Frequency Switching Technology SMPS
High Reliability, Compact Size, Light Weight

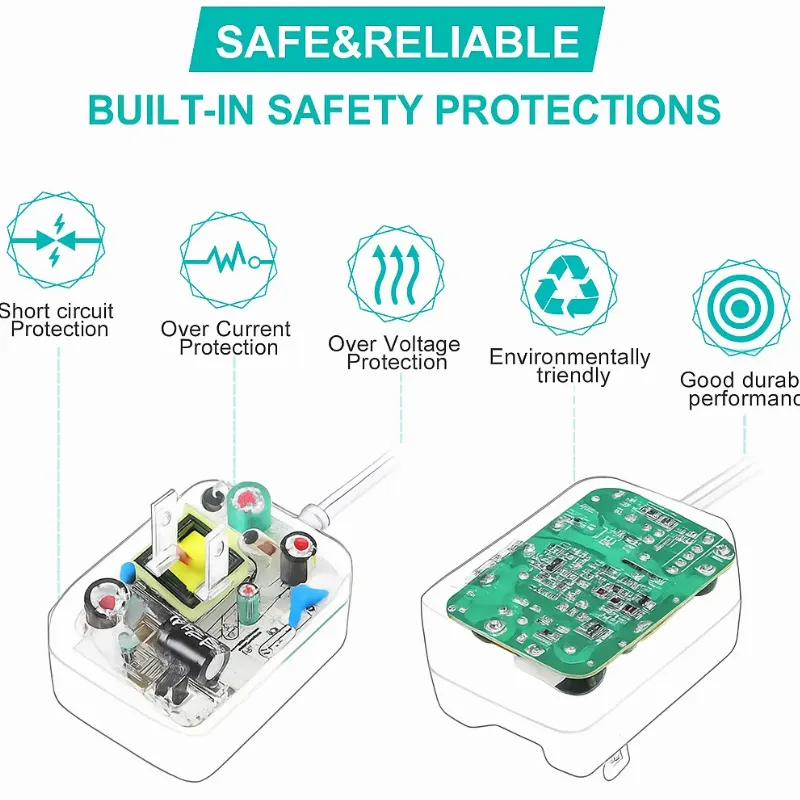

Protections: Output Short Circuit, Output Over Voltage, Over Temperature, Output Overload
Warranty: 1 Year Manufacturer
